Interferogram Analysis
 |

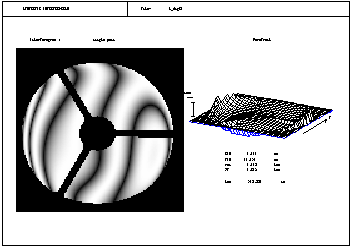

Synthetic interferograms may be computed from the system wavefront,
which simulate the results obtained in an interferometric test setup.
Aperture obscurations (as shown left) and vignetting are taken into account.
Following a tolerance simulation, not only the theoretical interferogram
but also the expected result of a real manufactured system can be obtained.
The wavefront, which generates the interferogram, is shown to the right
of the plot. Not included in OpTaliX-LT |
