Interferometric Surface Deformations
Models non-symmetric deformations on optical surfaces. Typically, such data is obtained from interferometric measurements of lens surfaces or complete optical systems or from external programs that generate appropriate data files. The data in an interferogram file can represent either surface deformation or wavefront perturbation data.Typical applications are: Evaluate the system performance ''as-built'', model impact of atmosphere

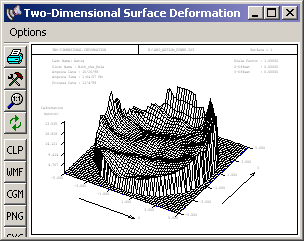

| Measured surface deformation: | Computed Point Spread Function: | |
 |
---> |  |
